Azure cloud

Azure

  • Building Blocks
  • Individual Resources
    • Belongs only to one Resource Group
  • Resource Groups
    • Contains many resources
  • ARM Templates (JSON)
    • Defines resources, dependencies, all configuration
  • Tags
    • Group resources by one or more tags
  • RBAC (Role based access control)

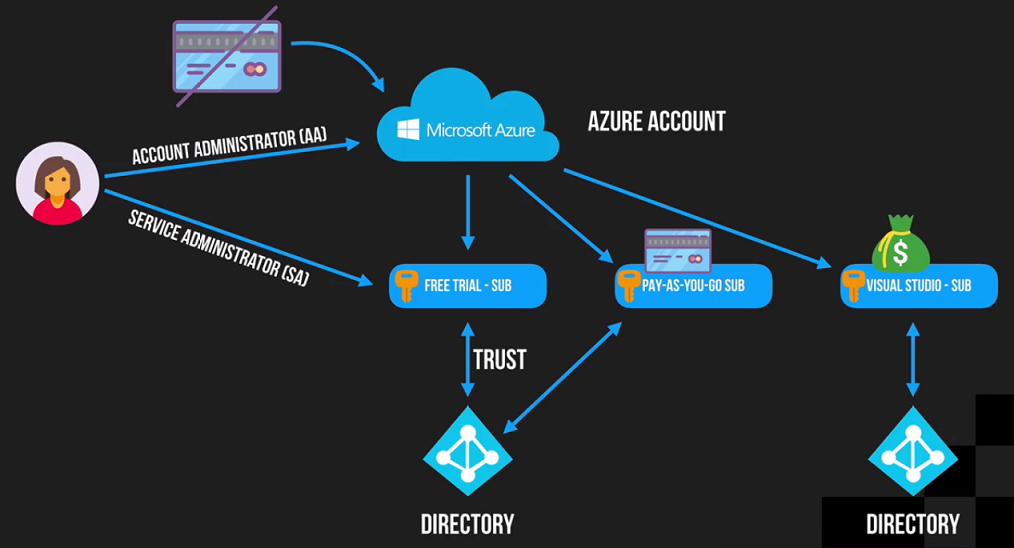

Account & Subscriptions

Account:

  • has a single user by default - account administrator.
  • has no billing info attached to it.
  • has no resources.

Subscription:

  • has a billing info
  • has a payment method
  • belongs to single directory

Azure account and subscription

Global Infrastructure

  • Geos
    • 1+ Region
    • 1+ Region Pair
  • Regions
    • 1+ DC’s
  • Region Pairs
    • 2 Regions

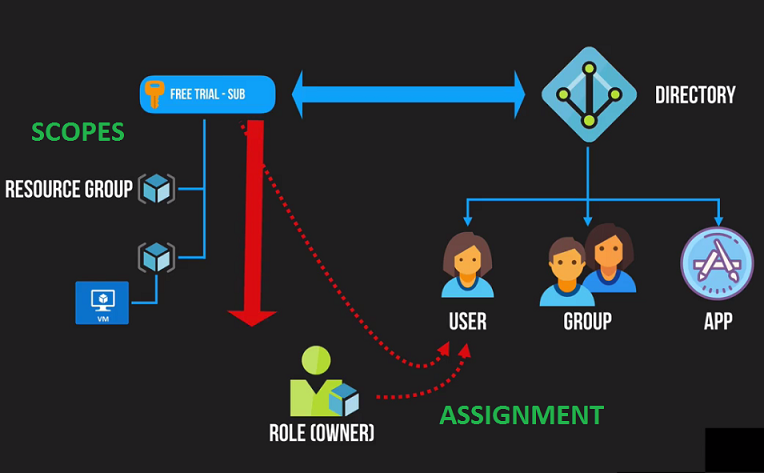

Role Based Access Control (RBAC)

  • Roles
  • Scopes
  • Assignments

Role is a policy document. A list of actions.

  • Built-in roles. Owner, Contributor, Reader
  • Specific roles: Backup Operator & Website Contributor
  • Custom Roles

Assignment role to scope

Azure Compute

  • Virtual Machines
    • Type
    • Size
  • App Service
    • Runtime environments
  • Cloud Services
    • Web Roles
    • Worker Roles
    • Have much more flexibility in configuration of underlying infrastructure
  • Container Service
    • Docker
    • Kubernetes
  • Azure Functions
  • Service Fabric
  • Batch

Azure Storage

  • Blob Storage
    • For unstructured data
    • Massive data: media files, images, etc.
    • Stores objects. Object is like a file. Object has: key (name), data, metadata
    • Block blobs are used to store files that can be accessed sequentially and are not subject to frequent updates. Some common examples of where Block blobs are leveraged include video files and images.
    • Page blobs are used to store files that need random access or are updated frequently.
  • Queue Storage
  • File Storage
  • Disk Storage

Charges by two factors: amount of storage or amount of accessing the data

Storage extras:

  • StorSimple
  • Archive Storage
  • Data Lake Store - large scale objects for big data analysis

Azure Storage Explorer

Azure Networking

  • Virtual Networks (vNet)
  • VPN Gateway
  • ExpressRoute
  • Content Delivery Network

Products:

  • Load Balancer
  • Application Gateway
  • Traffic Manager
  • Azure DNS

Databases

Relational:

  • SQL Database
  • Azure Database MySql
  • Azure Database PostgreSQL
  • SQL Data warehouse

NoSQL:

  • Table Storage
  • Azure Cosmos DB
  • Stretch Database
  • Redis Cache
  • Data factory

Web & Mobile

Azure App Service:

  • Web apps
  • Mobile Apps
  • Logic Apps
  • API Apps

Other:

  • Media Services
  • Azure Search
  • API Management
  • Notification Hubs
  • Service Bus

AI & Cognitive Services

  • Machine Learning
  • Azure Bot Service
  • Cognitive Services
    • Vision
    • Knowledge
    • Language
    • Speech
    • Search

Big Data & Analytics

  • HDInsight
    • Hadoop and it’s ecosystem
  • Data Lake Analytics
  • Azure Analysis Service
  • PowerBI

Internet of Things

  • IOT Hub
    • Bidirectional communication with device
  • IOT Edge
  • Stream Analytics
  • Event Grid
  • Event Hubs
    • Incoming only

Management & Monitoring

Monitoring:

  • Azure Monitor
  • Log Analytics
  • Application Insights

Management:

  • Backup
  • Site Recovery
  • Scheduler

Security & Identity

  • Security Centre
  • Role-Based Access Control
  • Key Vault
  • Azure Active Directory
  • Azure Active Directory B2C
  • Azure Active Directory Domain Services
  • Multi-Factor Authentication

Resources

Virtual Networks

  • Isolated Network
  • Has an address space for the network
  • Can be ‘subnetted’ into smaller sub-networks
  • Each of those can have an IP range
  • Can be connected together
